WIRING, ELECTRICAL, DASH
July - August 2009

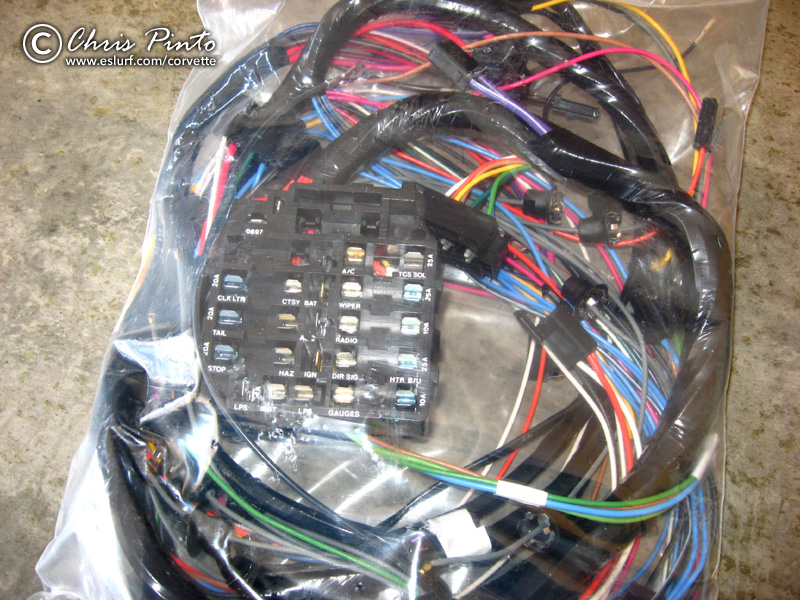

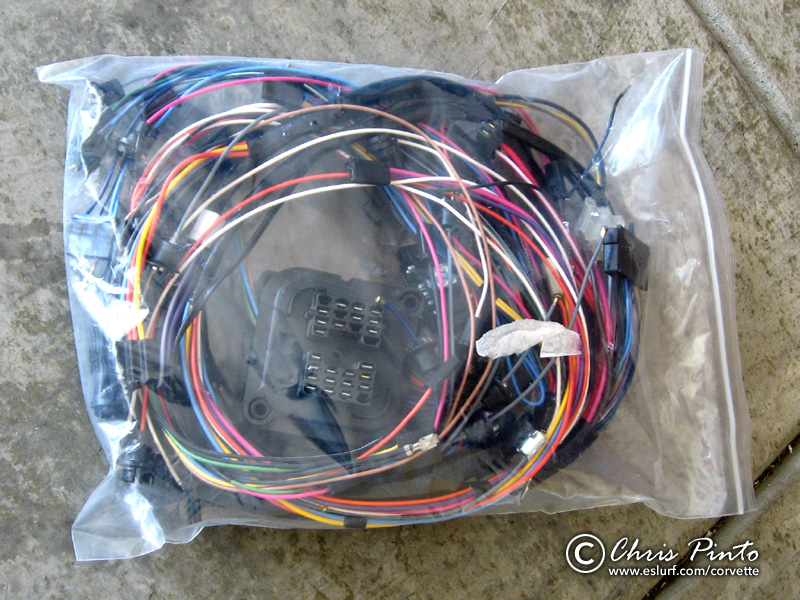

In an old car like this, the most important thing is to rewire properly. So I set to getting the re-wiring right and getting everything connected up to the Dash Harness and Engine Harness and the Rear Harness. Good god, there are just so many damned harnesses on this thing.. LOL

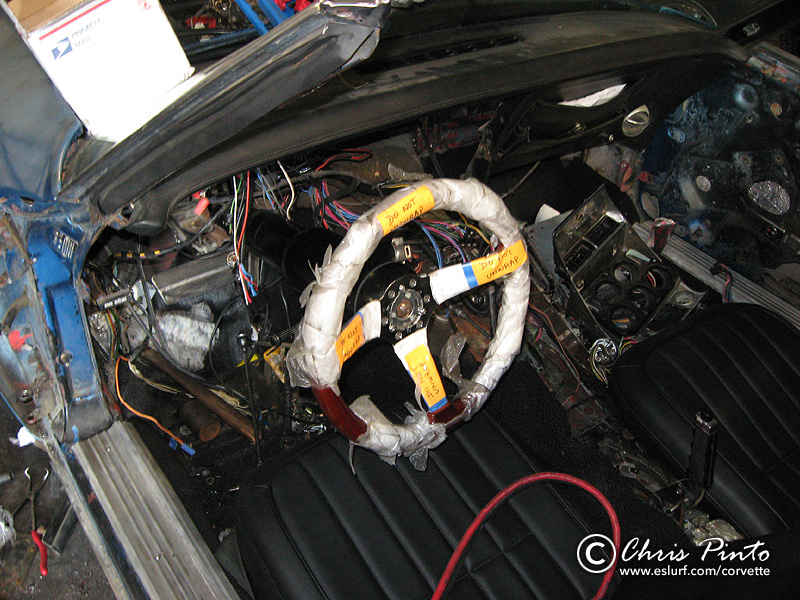

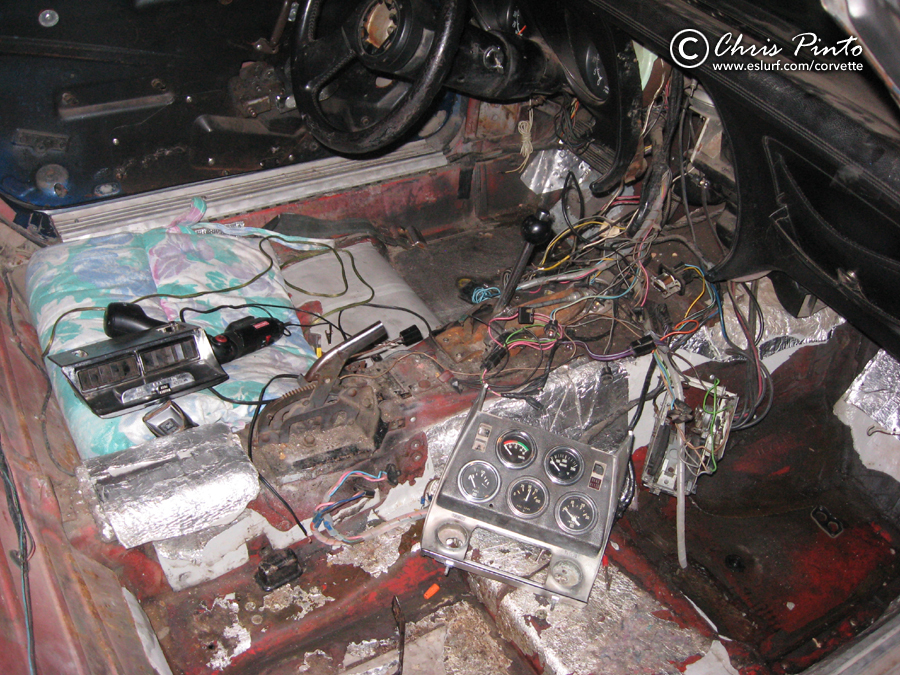

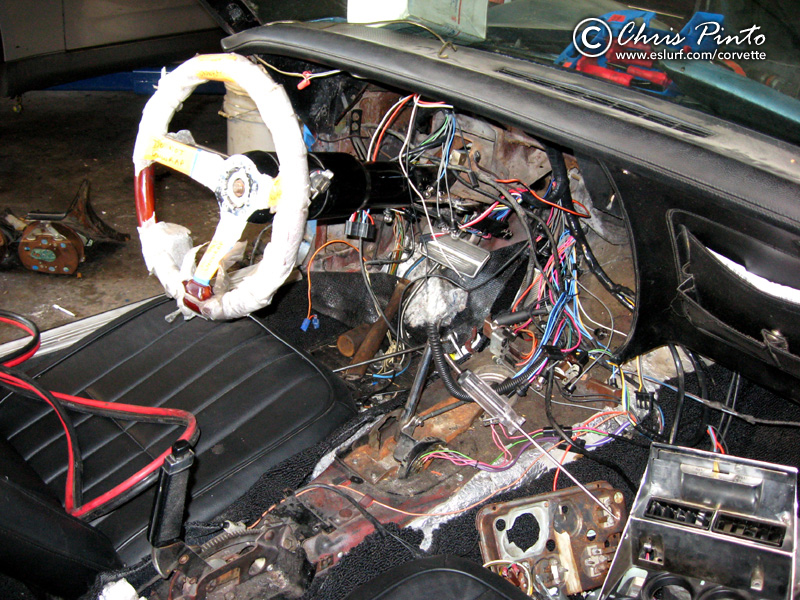

Good thing is I got the Front Lights and the Pop-UP Head lights Vaccum System fixed and the Rear lights and reverse lights to work, along with the Indicator lamps on either side. To the right side are some before pics and Below are 4 pictures of the re-wiring in various stages.

Need a few sensors to make the gauges work.
